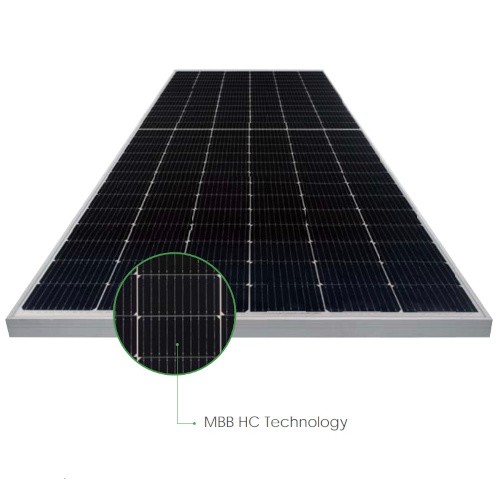

Jinko Tiger Pro 550 Watt Mono-Facial Solar Panel

Cell Type:

- P-type Mono-crystalline

- MBB HC Technology: Yes

- Mono-Facial Module: Yes

- No. of Cells: 144 (6 x 24)

Environmental Conditions:

- Wind Speed: 1m/s

- Cell Temperature: 25°C

- Ambient Temperature: 20°C

- STC: Irradiance 1000W/m²

- NOCT: Irradiance 800W/m²

Dimensions:

- 2274 x 1134 x 35mm

- 89.53 x 44.65 x 1.38 inches

Weight:

- 28.9 Kg

Front Glass:

- 3.2mm

- Anti-Reflection Coating

- High Transmission

- Low Iron

- Tempered Glass

Frame:

- Anodized Aluminium Alloy

Junction Box:

- IP68 Rated

Maximum Power (Pmax):

- STC: 550W

- NOCT: 409W

Maximum Power Voltage (Vmp):

- STC: 40.90V

- NOCT: 38.42V

Maximum Power Current (Imp):

- STC: 13.45A

- NOCT: 10.65A

Open-circuit Voltage (Voc):

- STC: 49.62V

- NOCT: 46.84V

Short-circuit Current (ISC):

- STC: 14.03A

- NOCT: 11.33A

Enhanced Mechanical Load:

- Wind Load: 2400 Pascal

- Snow Load: 5400 Pascal

Module Efficiency:

- STC: 21.33%

Operating Temperature:

- 40℃~+85℃

Maximum System Voltage:

- 1000/1500VDC (IEC)

Maximum Series Fuse Rating:

- 25A

Power Tolerance:

- 0~+3%

Temperature Coefficients of Pmax:

- -0.35%

Description:

Jinko Tiger Pro is a mono-facial solar panel with a capacity of 550 watts. It features Multi Busbar technology, which helps reduce internal resistance losses and provides improved lighting. This solar panel has an annual energy degradation of 0.55% and offers a long lifetime power warranty of 25 years. It is durable against extreme environmental conditions and resistant to high salt fog and ammonia.
