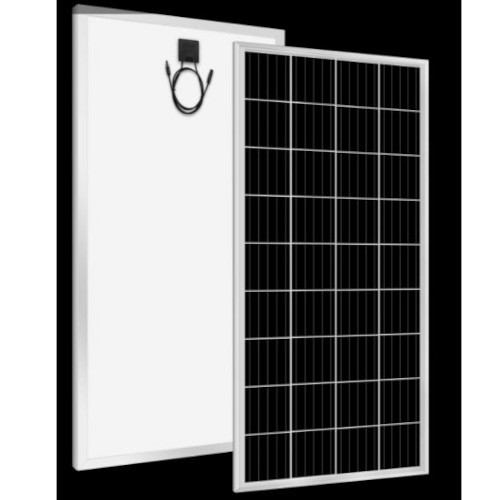

Sunshine 100 Watt Half Cut Solar Panel

Maximum Power (Pmax): 100W

Maximum Power Current (Ipm): 5.62A

Maximum Power Voltage (Vpm): 17.8V

Short Circuit Current (Isc): 6.07A

Open Circuit Voltage (Voc): 21.30V

Fitted with MC Type 4 connector: Yes

Cable: 900mm of 4mm single-core insulated cable

Nominal Operating Cell Temperatures: -45 to 80°C

Maximum System Voltage: DC1000V

Completely weatherproof: Yes

Factory-fitted aluminium frame: Yes

Suitable for charging all types of 12-volt battery: Yes

Maximum Series Fuse: 9A

Size: 540 x 1200 x 35mm

Weight: 7.3 Kg

Description

Sunshine is a Half Cut Solar Panel with a capacity of 100 watts. It consists of high-performance monocrystalline cells that connect to the PWM solar charge controller and MPPT solar controller to produce around 29 amps of electricity per day. Also, multiple panels can be connected to achieve extra high strength if needed. This solar panel provides more than 25 years of durability even in extreme environmental conditions. It is also resistant to high salt fog and ammonia.
